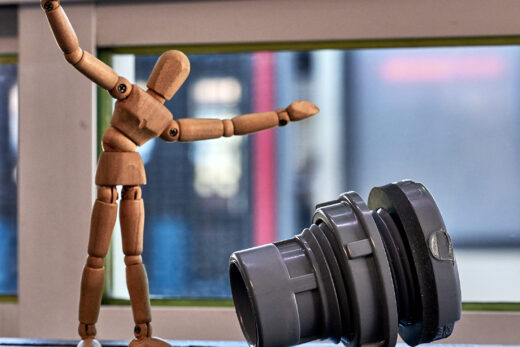

8171V-012C Adaptador Tanque CPVC Cédula 80 Mixto FKM Spears® de 1-1/4″

8171V-012C
1-1/4″ CPVC TANK ADAPT SOCXFPT FKM GASKET.
Spears®️ Manufacturing Company.

Adaptadores Tanque en PVC y CPVC Cédula 80 de Spears®

Principales características:

—> Adaptadores tanque, pasa muros, bulkhead fittings o bridas de tinaco.
—> Disponibles en PVC y CPVC Cédula 80; con empaques de Neopreno, EPDM o FKM.
—> Diámetros de 1/4″ hasta 8″, con diferentes combinaciones.
—> Facilitan la conexión a través de las paredes de tanques o de superficies de muros: plásticos, metálicos, vidrio, y demás.
—> Permiten conexión de tubería tanto interna como externa (por ambos lados del adaptador).
—> Se trabajan con conexión rosca por rosca, rosca a cementar, o cementable a tubo por ambos lados.
—> Cuentan con un estilo especial de auto-alineación.
—> Son los adaptadores de paso completo de mayor rendimiento y durabilidad a nivel mundial.
—> Los adaptadores con terminal SR (Special Reinforced) están diseñados con roscas internas de plástico reforzado y protección de acero inoxidable exterior patentadas por Spears®.
—> Las roscas Special Reinforced mejoran considerablemente la fuerza de la conexión, incluso cuando se pasa a la tubería de metal.
—> Diseñados para trabajar a una presión nominal de 150 psi a 73°F (23°C).
—> Los adaptadores en PVC pueden manejar fluidos a temperaturas de servicio de hasta 60° C, incluidos fluidos corrosivos.
—> En CPVC se pueden manejar fluidos a temperaturas de servicio de hasta 93ºC, incluidos corrosivos calientes.


Productos relacionados:

8170-002 1/4 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-003 3/8 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-005 1/2 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-007 3/4 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-010 1 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-012 1-1/4 PVC TANK ADAPT SOCXSOC NPRN GASKET
8170-015 1-1/2 PVC TANK ADAPT SOCXSOC NPRN GASKET
8170-020 2 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-025 2-1/2 PVC TANK ADAPT SOCXSOC NPRN GASKET
8170-030 3 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-040 4 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-060 6 PVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-080 8 PVC TANK ADAPTER SOCXSOC NPRN GASKET

8170-002C 1/4 CPVC TANK ADPTER SOCXSOC NPRN GASKET
8170-003C 3/8 CPVC TANK ADPTER SOCXSOC NPRN GASKET
8170-005C 1/2 CPVC TANK ADPTER SOCXSOC NPRN GASKET
8170-007C 3/4 CPVC TANK ADAPTER SOCXSOC NPRN GASKT
8170-010C 1 CPVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-012C 1-1/4 CPVC TANK ADPT SOCXSOC NPRN GASKET
8170-015C 1-1/2 CPVC TANK ADPT SOCXSOC NPRN GASKET
8170-020C 2 CPVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-025C 2-1/2 CPVC TANK ADPT SOCXSOC NPRN GASKET
8170-030C 3 CPVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-040C 4 CPVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-060C 6 CPVC TANK ADAPTER SOCXSOC NPRN GASKET
8170-080C 8 CPVC TANK ADAPTER SOCXSOC NPRN GASKET

8171-002 1/4 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-003 3/8 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-005 1/2 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-007 3/4 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-010 1 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-012 1-1/4 PVC TANK ADAPT SOCXFPT NPRN GASKET
8171-015 1-1/2 PVC TANK ADAPTER SOCXFPT NPRN GSKT
8171-020 2 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-025 2-1/2 PVC TANK ADAPT SOCXFPT NPRN GASKET
8171-030 3 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-040 4 PVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-060 6 PVC TANK ADAPTER SOCXFPT NPRN GASKET

8171-002C 1/4 CPVC TANK ADAPTER SOCXFPT NPRN GASKT
8171-003C 3/8 CPVC TANK ADPTER SOCXFPT NPRN GASKET
8171-005C 1/2 CPVC TANK ADPTER SOCXFPT NPRN GASKET
8171-007C 3/4 CPVC TANK ADPTER SOCXFPT NPRN GASKET
8171-010C 1 CPVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-012C 1-1/4 CPVC TANK ADPT SOCXFPT NPRN GASKET
8171-015C 1-1/2 CPVC TANK ADPT SOCXFPT NPRN GASKET
8171-020C 2 CPVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-025C 2-1/2 CPVC TANK ADPT SOCXFPT NPRN GASKET
8171-030C 3 CPVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-040C 4 CPVC TANK ADAPTER SOCXFPT NPRN GASKET
8171-060C 6 CPVC TANK ADAPTER SOCXFPT NPRN GASKET

8171-002SR 1/4 PVC TANK ADAPT SOCXSRFPT NPRN GASKET
8171-003SR 3/8 PVC TANK ADAPT SOCXSRFPT NPRN GASKET
8171-005SR 1/2 PVC TANK ADAPT SOCXSRFPT NPRN GASKET
8171-007SR 3/4 PVC TANK ADAPT SOCXSRFPT NPRN GASKET
8171-010SR 1 PVC TANK ADAPTER SOCXSRFPT NPRN GASKET
8171-012SR 1-1/4 PVC TANK ADPT SOCXSRFPT NPRN GASKT
8171-015SR 1-1/2 PVC TANK ADPT SOCXSRFPT NPRN GASKT
8171-020SR 2 PVC TANK ADAPTER SOCXSRFPT NPRN GASKET
8171-025SR 2-1/2 PVC TANK ADAPT SOCXSRFPT NPRN GSKT
8171-030SR 3 PVC TANK ADAPTER SOCXSRFPT NPRT GASKET
8171-040SR 4 PVC TANK ADAPTER SOCXSRFPT NPRN GASKET
8171-060SR 6 PVC TANK ADAPTER SOCXSRFPT NPRN GASKET

8171-002CSR 1/4 CPVC TANK ADPT SOCXSRFPT NPRN GASKET
8171-003CSR 3/8 CPVC TANK ADPT SOCXSRFPT NPRN GASKET
8171-005CSR 1/2 CPVC TANK ADPT SOCXSRFPT NPRN GASKET
8171-007CSR 3/4 CPVC TANK ADPT SOCXSRFPT NPRN GASKET
8171-010CSR 1 CPVC TANK ADPTER SOCXSRFPT NPRN GASKET
8171-012CSR 1-1/4 CPVC TANK ADAPT SOCXSRFPT NPRN GSK
8171-015CSR 1-1/2 CPVC TANK ADPT SOCXSRFPT NPRN GSKT
8171-020CSR 2 CPVC TANK ADPTER SOCXSRFPT NPRN GASKET
8171-025CSR 2-1/2 CPVC TANK ADAPT SOCXSRFPT NPRN GSK
8171-030CSR 3 CPVC TANK ADPTER SOCXSRFPT NPRN GASKET
8171-040CSR 4 CPVC TANK ADPTER SOCXSRFPT NPRN GASKET
8171-060CSR 6 CPVC TANK ADAPTER SOCXSRFPT NPRN GSKET

8172-002 1/4 PVC TANK ADAPTER FPTXFPT W/NPRN GSKT
8172-003 3/8 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-005 1/2 PVC TANK ADAPTER FPTXFPT W/NPRN GSKT
8172-007 3/4 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-010 1 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-012 1-1/4 TANK ADAPTER FPTXFPT NEOPRN GASKET
8172-015 1-1/2 PVC TANK ADAPTER FPTXFPT NPRN GSKT
8172-020 2 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-025 2-1/2 PVC TANK ADAPTER FPTXFPT NPRN GSKT
8172-030 3 PVC TANK ADAPTER FPTXFPT NPRNE GASKET
8172-040 4 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-060 6 PVC TANK ADAPTER FPTXFPT NPRN GASKET

8172-002C 1/4 CPVC TANK ADAPTER FPTXFPT NPRN GASKT
8172-003C 3/8 CPVC TANK ADAPT FPTXFPT W/NPRN GASKT
8172-005C 1/2 CPVC TANK ADAPTER FPTXFPT NPRN GASKT
8172-007C 3/4 CPVC TANK ADAPTER FPTXFPT NPRN GASKT
8172-010C 1 CPVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-012C 1-1/4 CPVC TANK ADAPT FPTXFPT NPRN GASKT
8172-015C 1-1/2 CPVC TANK ADAPT FPTXFPT NPRN GASKT
8172-020C 2 CPVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-025C 2-1/2 CPVC TANK ADAPT FPTXFPT NPRN GASKT
8172-030C 3 CPVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-040C 4 CPVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-060C 6 CPVC TANK ADAPTER FPTXFPT NPRN GASKET

8172-002SR 1/4 PVC TANK ADAPTER FPTXSRFPT NPRN GSKT
8172-003SR 3/8 PVC TANK ADAPT FPTXSRFPT W/NPRN GSKT
8172-005SR 1/2 PVC TANK ADAPTER FPTXSRFPT NPRN GSKT
8172-007SR 3/4 PVC TANK ADAPTER FPTXSRFPT NPRN GSKT
8172-010SR 1 PVC TANK ADAPTER FPTXSRFPT NPRN GASKET
8172-012SR 1-1/4 TANK ADAPTER FPTXSRFPT NPRN GASKET
8172-015SR 1-1/2 PVC TANK ADAPT FPTXSRFPT NPRN GSKT
8172-020SR 2 PVC TANK ADAPTER FPTXSRFPT NPRN GASKET
8172-025SR 2-1/2 PVC TANK ADAPT FPTXSRFPT NPRN GSKT
8172-030SR 3 PVC TANK ADAPTER FPTXSRFPT NPRN GASKET
8172-040SR 4 PVC TANK ADAPTER FPTXFPT NPRN GASKET
8172-060SR 6 PVC TANK ADAPTER FPTXSRFPT NPRN GASKET

8172-002CSR 1/4 CPVC TANK ADPTER FPT/SRFPT NPRN GSKT
8172-003CSR 3/8 CPVC TANK ADPT FPTXSRFPT W/NPRN GSKT
8172-005CSR 1/2 CPVC TANK ADAPT FPTXSRFPT NPRN GASKT
8172-007CSR 3/4 CPVC TANK ADPTER FPTXSRFPT NPRN GSKT
8172-010CSR 1 CPVC TANK ADAPTER FPTXSRFPT NPRN GSKET
8172-012CSR 1-1/4 CPVC TANK ADAPT FPTXSRFPT NPRN GSK
8172-015CSR 1-1/2 CPVC TANK ADAPT FPTXSRFPT NPRN GSK
8172-020CSR 2 CPVC TANK ADAPTER FPTXSRFPT NPRN GASKT
8172-025CSR 2-1/2 CPVC TANK ADAPT FPTXSRFPT NPRN GSK
8172-030CSR 3 CPVC TANK ADAPTER FPTXSRFPT NPRN GASKT
8172-040CSR 4 CPVC TANK ADAPTER FPTXSRFPT NPRN GASKT
8172-060CSR 6 CPVC TANK ADAPTER FPTXSRFPT NPRN GSKET


PVC Schedule 80 Fittings Sample Specification

All PVC Schedule 80 fittings shall be produced by Spears® Manufacturing Company from PVC Type I, cell classification 12454, conforming to ASTM Standard D 1784. All injection molded PVC Schedule 80 fittings shall be Certified for potable water service by NSF® International manufactured in strict compliance to ASTM D 2467. All fabricated fittings shall be produced in accordance with Spears® General Specifications for Fabricated Fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73°F.

CPVC Schedule 80 Sample Specification

All CPVC Schedule 80 fittings shall be produced by Spears® Manufacturing Company from CPVC materials, cell classification 23447 conforming to ASTM Standard D 1784. All injection-molded fittings through 12” shall be manufactured in compliance to ASTM F 439 and Certified by NSF® International for use with potable water service. All 14” through 24” and fabricated fittings shall be produced in accordance with Spears® Specifications. All CPVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5.
